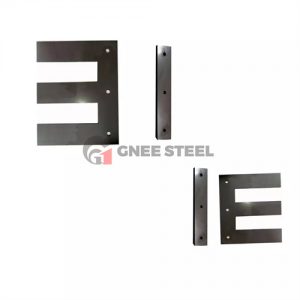

transformer core ei lamination EI38 silicon steel sheet
Three -phase Silicon Steel Sheet Transformer Core is made by the silicon steel strip. Date sheet (Single phase series Unite:mm) Type A B C D E F G H I J K Hole(Φ) EI-...
DESCRIPTION
Three -phase Silicon Steel Sheet Transformer Core is made by the silicon steel strip.
| Date sheet (Single phase series Unite:mm) | ||||||||||||
| Type | A | B | C | D | E | F | G | H | I | J | K | Hole(Φ) |
| EI-28 | 28 | 25 | 8 | 4 | 6 | 17 | 21 | |||||
| EI-30 | 30 | 25 | 10 | 5 | 5 | 15 | 20 | 25 | ||||
| EI-35 | 35 | 29.5 | 9.6 | 5 | 7.7 | 19.5 | 24.5 | 5 | ||||
| EI-41 | 41 | 33 | 13 | 6 | 8 | 21 | 27 | |||||
| EI-42 | 42 | 35 | 14 | 7 | 7 | 21 | 28 | 7 | 35 | 3.5 | ||
| EI-48 | 48 | 40 | 16 | 8 | 8 | 24 | 32 | 40 | ||||
| EI-50 | 50 | 42 | 14 | 9 | 9 | 25 | 34 | |||||
| EI-54 | 54 | 45 | 18 | 9 | 9 | 27 | 36 | 9 | ||||
| EI-57 | 57 | 47.5 | 19 | 9.5 | 9.5 | 28.5 | 38 | 9.5 | ||||
| EI-60 | 60 | 50 | 20 | 10 | 10 | 30 | 40 | 40 | ||||
FAQ
Q. What finishes can you provide?
A: powder coating, polishing, zinc/nickel /chrome plating, painting, anodized,
hot dip galvanized, sandblasted etc
Q. How do you ensure quality control?
A: We inspect every process based on your drawings or samples and also testing the products before packing.
Q. Is small quantity available?
A: Yes, Small quantity for trial order is available
Our Email: info@gescosteel.com.
