Silicon Steel

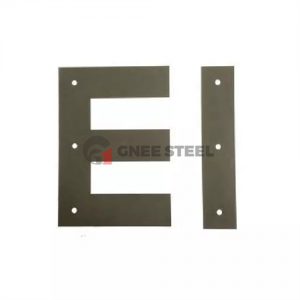

transformer core ei lamination silicon steel sheet EI42
The model of Silicon Steel Sheet Transformer Core in non-standard sizes is from EI-36 to EI-360. the gap sizes of transformer lamination core can be customized. ...
DESCRIPTION
The model of Silicon Steel Sheet Transformer Core in non-standard sizes is from EI-36 to EI-360. the gap sizes of transformer lamination core can be customized.
| Date sheet (Three phase series Unite:mm) | |||||||||
| TYPE | A | B | C(Long) | C(short) | D | E | Hole | NOTE | |
| NO. | (Φ) | ||||||||
| EI-16 | 80 | 16 | 48 | 40 | 16 | 16 | 4 | 8 | |
| EI-20 | 100 | 20 | 60 | 50 | 20 | 20 | 4 | 8 | |
| EI-22 | 110 | 22 | 66 | 55 | 22 | 22 | 4 | 8 | |
| EI-25 | 125 | 25 | 75 | 62.5 | 25 | 25 | 6 | 5.5 | |
| EI-28 | 140 | 28 | 84 | 70 | 28 | 28 | 4 | 8 | HIGH SPEED |
| EI-30 | 150 | 30 | 90 | 105 | 30 | 30 | 4 | 8 | HIGH SPEED |
| EI-32 | 160 | 32 | 80 | 80 | 32 | 32 | 4 | 7 | |
| EI-35 | 175 | 35 | 105 | 87.5 | 35 | 35 | 4 | 8 | HIGH SPEED |
| EI-36 | 180 | 36 | 90 | 90 | 35 | 35 | 6 | 8 | |
FAQ
Q1. Are you factory or trading company?
A: We are a customized metal stamping factory.
Q2.Can you provide sample for us?
A: Sure, free sample is available, now we have 3 own factories focuses on cast iron, cast steel and metal stamping
Q3. What raw material do you use?
A: stainless steel, carbon steel, mild steel, galvanized steel, aluminum alloy, etc.
