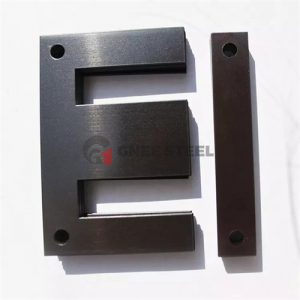

silicon steel ei lamination transformer core EI126
One phase EI silicon steel sheet with holes, also be called EI core with holes, the main size is from EI48-EI300 in our factory. Model A B C D E F G H I HOLE size(φ) EI-36 ...
DESCRIPTION
One phase EI silicon steel sheet with holes, also be called EI core with holes, the main size is from EI48-EI300 in our factory.
| Model | A | B | C | D | E | F | G | H | I | HOLE
size(φ) |
| EI-36 | 36 | 31 | 10 | 6.5 | 6.5 | 18 | 24.5 | 23 | 29.5 | |
| EI-44 | 44 | 38 | 12 | 8 | 8 | 22 | 30 | 28 | 36 | |
| EI-56 | 56 | 48 | 16 | 10 | 10 | 28 | 38 | 36 | 46 | 5 |
| EI-67 | 67 | 57.5 | 19 | 12 | 12 | 33.5 | 45.5 | 43 | 55 | 5 |
| EI-94 | 94 | 81 | 26 | 17 | 17 | 47 | 64 | 60 | 77 | 6 |
| EI-90 | 90 | 75 | 30 | 15 | 15 | 45 | 60 | 60 | 75 | 6 |
| EI-106 | 406 | 91 | 30 | 19 | 19 | 53 | 72 | 68 | 87 | 7 |
| EI-118 | 118 | 101 | 30 | 19 | 19 | 59 | 80 | 80 | 99 | 7 |
| EI-154 | 154 | 131 | 50 | 25 | 25 | 77 | 104 | 104 | 129 | 8 |
FAQ
1. Q: Can I get some samples?
A:Yes,sample order is available for quality check and market test.
2. Q: What’s the delivery time?
A: Sample order needs 1-2 days. Formal order needs 7-14 days.
3. Q: What’s your payment terms?
A: TT, LC, and DP.
