Silicon Steel
Electrical Steel Cold Rolled Grain Oriented

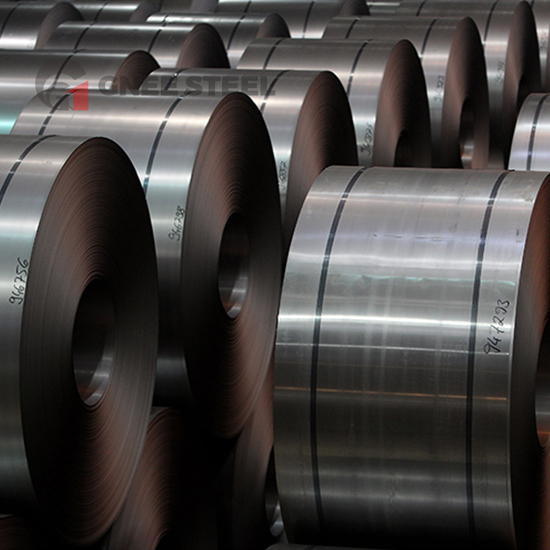

CRGO Steel materials come in two forms: Coils and sheets. A full width coils can weight up to 6 metric tons each. This unique steel is available in various thicknesses ranging from 0.18MM – 0.35 MM...
DESCRIPTION
CRGO Steel materials come in two forms: Coils and sheets. A full width coils can weight up to 6 metric tons each. This unique steel is available in various thicknesses ranging from 0.18MM – 0.35 MM and more commonly has come to be referred to globally by grades M2-M6.
CRGO steel is used in manufacturing the magnetic core for power and distribution transformers. Working with this unique and specialized steel, we are able to provide our customer full-width CRGO coils & slit coils for their transformer production needs. Cold-rolled grain-oriented steel is often abbreviated to CRGO. The growing demands of our customers are met by continually offering an assortment of materials with various core losses w/kg.
| Grade | Thickness | Maximum Core Loss at 15kg(1.5T) | ||||
| W/lb | W/kg | |||||
| Inch | mm | 60Hz | 50Hz | 60Hz | 50Hz | |
| M-3 | 0.009 | 0.23 | 0.44 | 0.36 | 0.97 | 0.79 |
| M-4 | 0.0106 | 0.27 | 0.53 | 0.40 | 1.17 | 0.89 |
| M-5 | 0.0118 | 0.30 | 0.58 | 0.44 | 1.28 | 0.97 |
| M-6 | 0.0138 | 0.35 | 0.66 | 0.50 | 1.46 | 1.11 |
