Silicon Steel

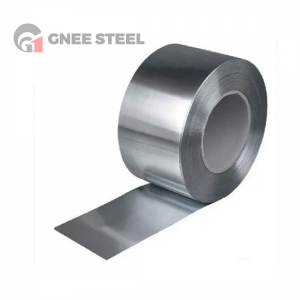

B30R090 orientated silicon steel
Oriented silicon steel can withstand high magnetic field strengths without saturation. product name oriented silicon steel Grade B30R090 Thickness 0.27mm Nominal thickness ...
DESCRIPTION
Oriented silicon steel can withstand high magnetic field strengths without saturation.
| product name | oriented silicon steel |
| Grade | B30R090 |
| Thickness | 0.27mm |
| Nominal thickness tolerance(mm) | +0.010-0.015 |
| Longitudinal thickness deviation(mm) | +0.0120 |
| Assumed density | 7.65kg/dm3 |
| Length | Coil Or As Required |
| Tensile strength (L) | 378mpa |
| Yield strength (L) | 360mpa |
| Elongation (L) | 10% |
| Surface Treatment | Coated |
| Application | Widely used in Transformer, reactor, mutual inductor, motor. |
Precision Grain Orientation: The B30R090 orientated silicon steel undergoes a grain orientation process that aligns the crystal grains to maximize magnetic properties.
Directional Magnetic Properties: The grain alignment results in anisotropic properties, favoring magnetization in one direction.
FAQ
1. Q.What are your advantages?
A: High quality products, competitive price and professional export service.
2.Q.Can your products be customized?
A.We can make most arades and specifications.meet your different requirement.
3.Q: How do your guarantee the quality?
A: Before mass production, there must be pre-production samples; before shipment, there must be final inspection.
