Silicon Steel

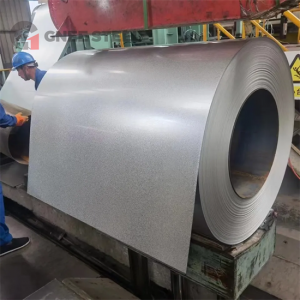

B27P110 orientated silicon steel
Orientation Silicon steel is highly directional, has the lowest iron loss in the rolling direction. Product Name oriented silicon steel Grade B27P110 Thickness 0.27mm Nomin...
DESCRIPTION
Orientation Silicon steel is highly directional, has the lowest iron loss in the rolling direction.
| Product Name | oriented silicon steel |
| Grade | B27P110 |
| Thickness | 0.27mm |
| Nominal thickness tolerance(mm) | +0.010-0.020 |
| Longitudinal thickness deviation(mm) | +0.0150 |
| Assumed density | 7.65kg/dm3 |
| Length | Coil Or As Required |
| Tensile strength (L) | 378mpa |
| Yield strength (L) | 360mpa |
| Elongation (L) | 10% |
| Surface Treatment | Coated |
| Application | Widely used in Transformer, reactor, mutual inductor, motor. |
Oriented silicon steel offers high saturation induction, which refers to the maximum magnetic field a material can withstand before it becomes saturated and unable to further enhance its magnetization. This property allows for compact and lightweight transformer designs.
FAQ
1.Q.How can I trust you?
A. We think honesty is the core of our company, you can come to know it personally so that you can check our credit.
2.Q. Can I customise the products?
A.Of course you can. We can manufacture according to your samples or technical drawings. We can make moulds and jigs.
3.Q.Do you have quality control?
A. Yes, we have got BV.SGS certification.
4.Q. Can you provide samples?
A.We can provide them for free, you need to bear the shipping cost.
