Silicon Steel

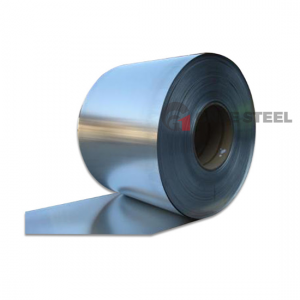

B23R090 orientated silicon steel
Orientated silicon steel produces a high magnetic induction strength, which enables efficient energy conversion. product name oriented silicon steel Grade B23R090 Thickness 0.23...
DESCRIPTION
Orientated silicon steel produces a high magnetic induction strength, which enables efficient energy conversion.
| product name | oriented silicon steel |
| Grade | B23R090 |
| Thickness | 0.23mm |
| Nominal thickness tolerance(mm) | +0.010-0.015 |
| Longitudinal thickness deviation(mm) | +0.0120 |
| Assumed density | 7.65kg/dm3 |
| Length | Coil Or As Required |
| Tensile strength (L) | 393mpa |
| Yield strength (L) | 371mpa |
| Elongation (L) | 13% |
| Surface Treatment | Coated |
| Application | Widely used in Transformer, reactor, mutual inductor, motor. |
B23R090 orientated silicon steel has been specially treated to provide strong corrosion resistance and protect its surface from corrosion.
High tensile strength: B23R090 orientated silicon steel has a high tensile strength, which helps to reduce vibrations and noise in transformers and motors.
FAQ
1.Q.Why choose Gnee?
A.With us, you will get the most competitive price, guaranteed quality, guaranteed delivery and after-sales service.
2.Q: What product information do I need to provide?
A: You need to provide the grade, width, thickness, coating and tonnage you need to buy.
3.Q.Does the product have quality inspection before loading?
A.Of course, all our products are strictly tested for quality before packaging, and ungualified products will bedestroyed.we accept the third party inspection absolutely.
