Silicon Steel

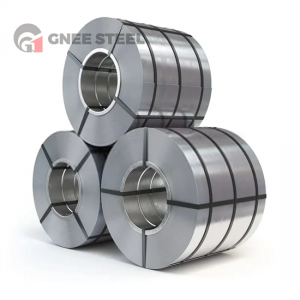

B23R085-LM orientated silicon steel
Oriented silicon steel, also known as cold rolled transformer steel, is an important silicon-iron alloy used in the transformer (core) manufacturing industry. product name oriented silicon ...
DESCRIPTION
Oriented silicon steel, also known as cold rolled transformer steel, is an important silicon-iron alloy used in the transformer (core) manufacturing industry.
| product name | oriented silicon steel |
| Grade | B23R085-LM |
| Thickness | 0.23mm |
| Nominal thickness tolerance(mm) | +0.010-0.015 |
| Longitudinal thickness deviation(mm) | +0.0120 |
| Assumed density | 7.65kg/dm3 |
| Length | Coil Or As Required |
| Tensile strength (L) | 354mpa |
| Yield strength (L) | 331mpa |
| Elongation (L) | 14% |
| Surface Treatment | Coated |
| Application | Widely used in Transformer, reactor, mutual inductor, motor. |
Low temperature coefficient: The magnetic properties of oriented silicon steel change less at low temperatures.
Excellent electromagnetic properties: The electromagnetic properties of oriented silicon steel are higher than those of ordinary electrical steel.
FAQ
1.Q.Why choose Gnee?
A.With us, you will get the most competitive price, guaranteed quality, guaranteed delivery and after-sales service.
2.Q.Can your products be customized?
A.We can make most arades and specifications.meet your different requirement.
3.Q: Do you have a quality control system?
A: Yes, we have our own quality control laboratory. Third party testing service is also available.
