Silicon Steel

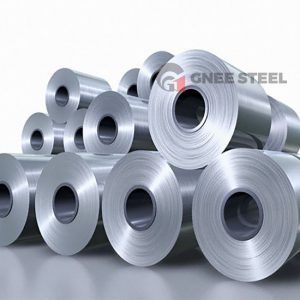

B23P100 orientated silicon steel
The grain orientation reduces hysteresis losses, meaning itexperiences minimal energy dissipation during magnetization and demagnetization cycles. Product Name oriented silicon steel G...
DESCRIPTION
The grain orientation reduces hysteresis losses, meaning itexperiences minimal energy dissipation during magnetization and demagnetization cycles.
| Product Name | oriented silicon steel |
| Grade | B23P100 |
| Thickness | 0.23mm |
| Nominal thickness tolerance(mm) | +0.010-0.020 |
| Longitudinal thickness deviation(mm) | +0.0120 |
| Assumed density | 7.65kg/dm3 |
| Length | Coil Or As Required |
| Tensile strength (L) | 354mpa |
| Yield strength (L) | 331mpa |
| Elongation (L) | 14% |
| Surface Treatment | Coated |
| Application | Widely used in Transformer, reactor, mutual inductor, motor. |
B23P100 orientated silicon steel Smooth, flat surface and uniform thickness can improve the filling factor of iron core. Surface insulation film adhesion is good.
Flat surface, small differences between the same plate, good plate shape, good processing performance, wide range of applications, wide frequency range, will not further corrode the internal.
FAQ
Q: What are the packing terms?
A: Usually we pack the goods in bundles or rolled up with rods or belts, we can also pack the goods according to customer’s requirements.
Q: What is your delivery time?
A: For stock goods, we can deliver the goods to the port of loading within 7 working days after receiving the deposit. For production period, it is usually around 15 to 30 days after receiving the deposit.
Q: Can you produce according to samples?
A: Yes, we can produce according to your samples or technical drawings for customers, and we can make moulds and jigs.
