Silicon Steel

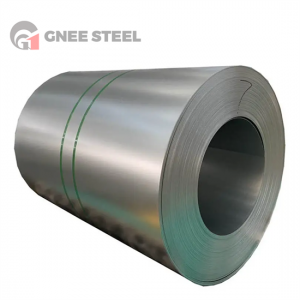

B20R060 orientated silicon steel
Magnetic domain refinement silicon steel, also known as grain oriented silicon steel or oriented silicon steel. Product Name oriented silicon steel Grade B20R060 Thickness 0.20m...
DESCRIPTION
Magnetic domain refinement silicon steel, also known as grain oriented silicon steel or oriented silicon steel.
| Product Name | oriented silicon steel |
| Grade | B20R060 |
| Thickness | 0.20mm |
| Nominal thickness tolerance(mm) | +0.010-0.015 |
| Longitudinal thickness deviation(mm) | +0.0120 |
| Assumed density | 7.65kg/dm3 |
| Length | Coil Or As Required |
| Tensile strength (L) | 371mpa |
| Yield strength (L) | 354mpa |
| Elongation (L) | 9% |
| Surface Treatment | Coated |
| Application | Widely used in Transformer, reactor, mutual inductor, motor. |
High permeability: Domain Refined B20R060 orientated silicon steel has a high permeability, which means that it conducts magnetic fields efficiently, reducing the energy loss from the magnetic field and increasing the energy efficiency of the equipment.
FAQ
1.Q.Why choose Gnee?
A.With us, you will get the most competitive price, guaranteed quality, guaranteed delivery and after-sales service.
2.Q.Can your products be customized?
A.We can make most arades and specifications.meet your different requirement.
3.Q: How do your guarantee the quality?
A: Before mass production, there must be pre-production samples; before shipment, there must be final inspection.
4.Q. Can you provide samples?
A.We can provide them for free, you need to bear the shipping cost.
