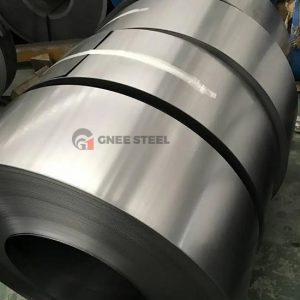

B20P080 orientated silicon steel
Oriented silicon steel can withstand high magnetic field strengths without saturation. Product Name oriented silicon steel Grade B20P080 Thickness 0.20mm Nominal thickness ...
DESCRIPTION
Oriented silicon steel can withstand high magnetic field strengths without saturation.
| Product Name | oriented silicon steel |
| Grade | B20P080 |
| Thickness | 0.20mm |
| Nominal thickness tolerance(mm) | +0.010-0.015 |
| Longitudinal thickness deviation(mm) | +0.0120 |
| Assumed density | 7.65kg/dm3 |
| Length | Coil Or As Required |
| Tensile strength (L) | 349mpa |
| Yield strength (L) | 326mpa |
| Elongation (L) | 13% |
| Surface Treatment | Coated |
| Application | Widely used in Transformer, reactor, mutual inductor, motor. |
Mechanical Strength: oriented silicon steels possess sufficient mechanical strength towithstand the manufacturing process, including stamping, cutting, and assembly. Thematerial must maintain its structural integrity during these processes.
Surface lnsulation: To further reduce eddy current losses, oriented silicon steels areoften coated with an insulating layer. This insulation helps isolate individual laminations.minimizing the flow of eddy currents and improving overall efficiency.
FAQ
Q. Are you a manufacturer?
A. Yes, we are manufacturer. We have our own factory and company. I believe we will be the most suitable supplier for you.
Q: Can we visit your factory?
A: Of course you can. We welcome you to visit our factory, check our production line and learn more about our strength and quality.
Q: Do you have a quality control system?
A: Yes, we have our own quality control laboratory.
