Silicon Steel

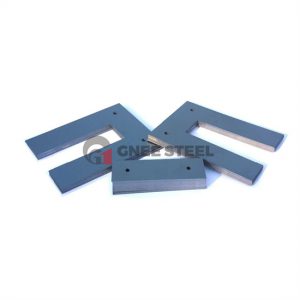

Silicon Steel Ei Lamination Transformer Core
Silicon steel chips, also known as laminations or sheets, are thin slices of silicon steel used in the construction of transformer cores. Silicon steel is an alloy that contains silicon and is desi...
DESCRIPTION
Silicon steel chips, also known as laminations or sheets, are thin slices of silicon steel used in the construction of transformer cores. Silicon steel is an alloy that contains silicon and is designed to have high magnetic permeability and low core losses. It is widely used in the manufacturing of electrical transformers due to its favorable magnetic properties.
Products Description:
|
Product Name
|
Silicon steel coil
|
|
Brand
|
GNEE
|
|
Capacity
|
about 2000 tons per month for the coil product
|
|
Width
|
40mm-1200mm 1000/1100/1200(mm) or per customer’s request
|
|
Nominal Thickness
|
0.23mm
|
|
Max.Core Loss
|
50w1300 7.5W/kg,50W800 5.8W/kg,50W600 4.2W/kg.
|
|
Min.Induction
|
50w1300 1.74T,50W800 1.70T,50W600 1.67T.
|
|
Min.Lamination Factor
|
97%
|
|
Application
|
compressor motor,electric machinery,rectifier,transformer,etc.
|
FAQ:
Q:Are you a Manufacturer?
A:Yes,we both Manufacturer and trading company,you will own high quality and competitive price.
