Silicon Steel

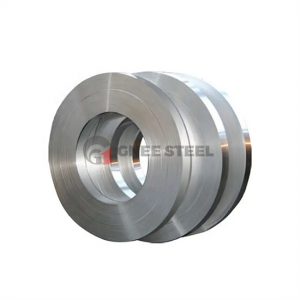

M1 M2 M3 cold rolled grain oriented steel coil for CRGO transformers
Silicon steel, also known as silicon steel sheet or electrical steel, is a very low carbon content of ferrosilicon soft magnetic alloy steel, usually silicon content of 0.5% ~ 4.5%. The addition of...
DESCRIPTION
Silicon steel, also known as silicon steel sheet or electrical steel, is a very low carbon content of ferrosilicon soft magnetic alloy steel, usually silicon content of 0.5% ~ 4.5%. The addition of silicon can increase the resistivity and maximum permeability of iron, thus reducing the coercivity, iron loss and magnetic aging.
Products Description:
|
Product Name
|
0.23mm m19 cold rolled crgo laminated grain oriented silicon steel sheet for transformer iron core
|
|
Material
|
silicon steel
|
|
Grade
|
M19
|
|
Capacity
|
about 2000 tons per month for the coil product
|
|
Brade
|
ZHANZHI
|
|
Width
|
40mm-1200mm 1000/1100/1200(mm) or per customer’s request
|
|
Nominal Thickness
|
0.23mm
|
|
Max.Core Loss
|
50w1300 7.5W/kg,50W800 5.8W/kg,50W600 4.2W/kg.
|
|
Min.Induction
|
50w1300 1.74T,50W800 1.70T,50W600 1.67T.
|
|
Min.Lamination Factor
|
97%
|
|
Application
|
compressor motor,electric machinery,rectifier,transformer,etc.
|
Our advantages:
1. We are a manufacturer with a large inventory, so we can deliver goods quickly.
2. We have strict and perfect raw material screening standards and quality inspection means.
3. We are a factory, so we can meet your custom/customizable needs.
4. We are a reliable manufacturer, can provide you with more stable product supply, stable price and perfect after-sales service.
5. Our factory has passed CQC certification and SGS certification.
