Silicon Steel

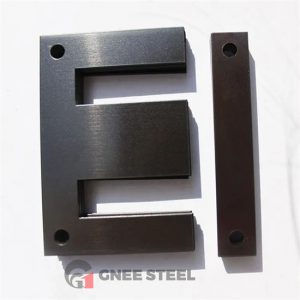

GNEE International standard EI lamination silicon steel sheet
Laminated silicon steel sheet, also known as electrical steel or silicon steel, is a type of steel that is used in the construction of electrical machines such as transformers, generators, and moto...
DESCRIPTION
Laminated silicon steel sheet, also known as electrical steel or silicon steel, is a type of steel that is used in the construction of electrical machines such as transformers, generators, and motors. It is called “laminated” because it is composed of thin layers, or laminations, of silicon steel that are stacked together to form the core of the machine.
Products Description:
| SIZE | EI-35 to EI-360
3PEI-17.5-3PEI-100 |
| THCIKNESS | 0.23-0.35MM (CRGO)
0.35-0.5MM (CRNGO) |
| MATERIAL | M3, M4, M5, M6 (CRGO)
35W250, 35W300, 35W400 (0.35MM) 50W250, 50W310, 50W400, 50W470, 50W600, 50W800 (0.5MM) |
| FREQUENCY | 50HZ-60HZ |
| COATING | T2 Inorganic ( CRGO )
T4 Semi-organic (CRNGO) |
| PROCESS TECHNOLOGY | ANNEALLING & WITHOUT ANNEALLING |
| APPLICATION | CONTROL TRANSFORMER, AUTO TRANSFORMER, ISOLATION TRANSFORMER,
POWER TRANSFORMER; BALLAST, REACTOR,INDUCTOR,INVERTER POWER, VOLTAGE STABILIZERS.etc. |
FAQ:
Q: Can I get some samples?
A:Yes,sample order is available for quality check and market test.
