Silicon Steel

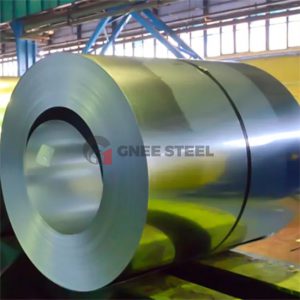

Cold Rolled Grain Oriented Non-Oriented Silicon Electrical Steel Coil
The main purpose of cold-rolled non-oriented silicon steel is used for generator manufacturing, so it is also called cold rolled motor silicon steel. Product Description Product Name 0.3...
DESCRIPTION
The main purpose of cold-rolled non-oriented silicon steel is used for generator manufacturing, so it is also called cold rolled motor silicon steel.
Product Description
| Product Name | 0.3mm Cold rolled m6 grain oriented high silicon steel for transformer |
| Material | silicon steel |
| Grade | m6 |
| Capacity | about 2000 tons per month for the coil product |
| Width | 40mm-1200mm 1000/1100/1200(mm) or per customer’s request |
| Nominal Thickness | 0.3mm |
| Max.Core Loss | 50w1300 7.5W/kg,50W800 5.8W/kg,50W600 4.2W/kg. |
| Min.Induction | 50w1300 1.74T,50W800 1.70T,50W600 1.67T. |
| Min.Lamination Factor | 97% |
| Application | compressor motor,electric machinery,rectifier,transformer,etc. |
