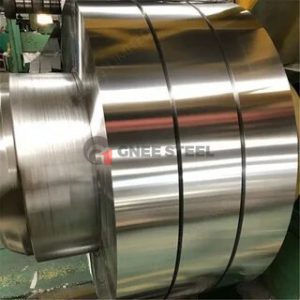

100mm CRGO Grain Oriented Electrical Silicon Steel Coils
CRGO (Grain Oriented Electrical Silicon Steel) Coils are widely used in the manufacture of high load transformers, automotive generators, motors and engines. Product Detail Product Name...
DESCRIPTION
CRGO (Grain Oriented Electrical Silicon Steel) Coils are widely used in the manufacture of high load transformers, automotive generators, motors and engines.
Product Detail
|
Product Name
|
100mm CRGO Grain Oriented Electrical Silicon Steel Coils
|
|
Grade
|
M3
|
|
Capacity
|
about 2000 tons per month for the coil product
|
|
Brade
|
GNEE
|
|
Width
|
40mm-1200mm 1000/1100/1200(mm) or per customer’s request
|
|
Nominal Thickness
|
0.27mm
|
|
Max.Core Loss
|
50w1300 7.5W/kg,50W800 5.8W/kg,50W600 4.2W/kg.
|
|
Min.Induction
|
50w1300 1.74T,50W800 1.70T,50W600 1.67T.
|
|
Min.Lamination Factor
|
97%
|
|
Application
|
compressor motor,electric machinery,rectifier,transformer,etc.
|
Quality Inspection Program
1. Chemical composition testing: The company conducts chemical composition testing on each batch of raw materials to ensure that the materials meet the relevant specifications.
2. Dimensional measurement: During the production process, the company performs dimensional measurements on the manufactured power silicon steel products to ensure that they meet the specifications required by the customer.
3. Surface inspection: The company will check the surface of the power silicon steel products for defects or contamination to ensure that the products are of good quality in appearance.
4. Magnetic measurement: The power silicon steel products have special magnetic ability, and the company will measure the magnetic properties of the products to ensure that they meet the customer’s requirements.
5. Insulation strength test: The company will test the insulation strength of the electric power silicon steel products to ensure that the insulation performance of the products meets the requirements.
