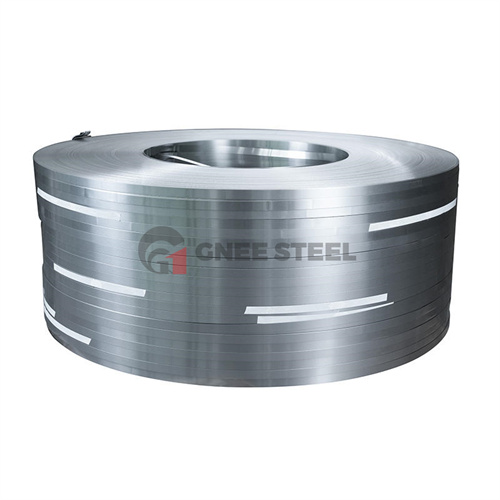

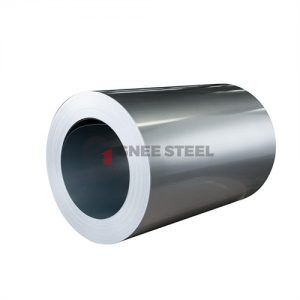

B65A600 Cold Rolled Electrical Steel Silicon Steel Coil
High magnetic inductance of silicon steel allows for high maximum magnetic inductance (Bm) of the design, small core size and light weight, saving silicon steel, wires, insulation materials and str...
DESCRIPTION
High magnetic inductance of silicon steel allows for high maximum magnetic inductance (Bm) of the design, small core size and light weight, saving silicon steel, wires, insulation materials and structural materials, etc., making it possible to reduce both motor and transformer losses and manufacturing costs, as well as facilitate assembly and transportation.
B65A600 steel Mechanical Properties
|
Grade |
Nominal thickness（mm） |
tensile strength L（N/mm2） |
Yield Strength L（N/mm2） |
Elongation L（%） |
Hardness HV1 |
Bending frequency (times) |
Stacking factor（%） |
|
B6A600 |
0.65 |
7.75 |
408 |
248 |
37 |
138 |
≥15 |
B65A600 steel sheet/plate Electromagnetic induction standard
|
Grade |
Nominal thickness（mm） |
Theoretical density（kg/dm3） |
Maximum core loss P17/50 |
minimum magnetic induction（T） |
|
B65A600 |
0.65 |
7.75 |
6.00 |
1.64 |
FAQ:
Q: Is there after-sales service? How long can you guarantee your product?
A: Yes, we will provide after-sales service; therefore, if you have any confusion or questions during use, please feel free to contact us, we will serve you wholeheartedly.
Q: Do you have any assurance for your products?
A: It will have the mill test for quality and material report for each shipment.
