Silicon Steel

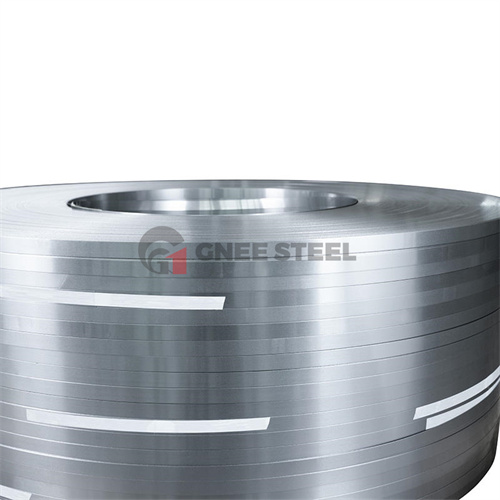

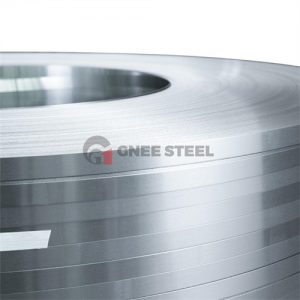

B50A350 Cold Rolled Electrical Steel Silicon Steel Coil
When silicon steel plates are processed into cores, continuous coating equipment is used to spray insulating coating solution underneath the plates in order to improve their processing performance ...
DESCRIPTION
When silicon steel plates are processed into cores, continuous coating equipment is used to spray insulating coating solution underneath the plates in order to improve their processing performance and prevent eddy current losses equivalent to the self-multiplying thickness of the plates.
B50A350 steel Mechanical Properties
|
Grade |
Nominal thickness（mm） |
tensile strength L（N/mm2） |
Yield Strength L（N/mm2） |
Elongation L（%） |
Hardness HV1 |
Bending frequency (times) |
Stacking factor（%） |
|
B50A350 |
0.50 |
7.65 |
516 |
376 |
26 |
197 |
≥14 |
B50A350 steel plate Electromagnetic induction standard
|
Grade |
Nominal thickness（mm） |
Theoretical density（kg/dm3） |
Maximum core loss P17/50 |
minimum magnetic induction（T） |
|
B50A350 |
0.50 |
7.65 |
3.50 |
1.62 |
The requirements for the performance of silicon steel are mainly
1, smooth surface, flat and uniform thickness, which can improve the filling factor of the core.
2、Good sheet punching property, which is more important for manufacturing micro and small motors.
3、Good adhesion and weldability of the surface insulating film, which can prevent corrosion and improve the punching performance.
If you are interested in our products, please feel free to send us an email to inquire.
