Silicon Steel

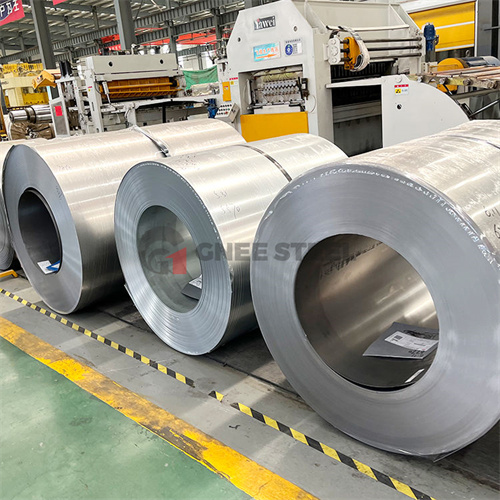

B35AR300 Cold Rolled Electrical Steel Silicon Steel Coil

B35AR300 Cold Rolled Electrical Steel Silicon Steel Coil

B35AR300 belong electrical steel (silicon steel, silicon steel), thickness of 0.35, the iron loss P15 / 50 W / kg not more than 3, stacking factor of not less than 95%. Thickness: 0.1,0.2,0.35 m...

Whatsapp Send Email
DESCRIPTION

B35AR300 belong electrical steel (silicon steel, silicon steel), thickness of 0.35, the iron loss P15 / 50 W / kg not more than 3, stacking factor of not less than 95%.

Thickness: 0.1,0.2,0.35 mm 0.5mm
Width: 50- 1250 mm
Weight: 4-8MT,1-4MT

B35AR300 steel Mechanical Properties :

Grade

tensile strength
L(N/mm2)

Yield Strength
L(N/mm2)

Elongation
L(%)

Hardness
HV1

Bending frequency (times)

Stacking factor(%)

tensile strength
L(N/mm2)

B35AR300

0.35

7.80

381

252

39

123

≥15

B35AR300 electromagnetic performance standards:

Grade

Nominal thickness(mm)

Theoretical density(kg/dm3)

Maximum core loss P17/50
(W/kg)

The minimum magnetic induction B8
(T)

B35AR300

0.35

7.80

3.00

1.73

If you are interested in our products, please feel free to send us an email to inquire.
