Silicon Steel

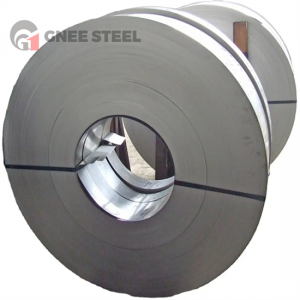

B20P085 orientated silicon steel
Preferred grain orientation allows precise control of magnetic flux in transformers and electrical equipment. Product Name oriented silicon steel Grade B20P085 Thickness 0.20mm ...
DESCRIPTION
Preferred grain orientation allows precise control of magnetic flux in transformers and electrical equipment.
| Product Name | oriented silicon steel |
| Grade | B20P085 |
| Thickness | 0.20mm |
| Nominal thickness tolerance(mm) | +0.010-0.015 |
| Longitudinal thickness deviation(mm) | +0.0120 |
| Assumed density | 7.65kg/dm3 |
| Length | Coil Or As Required |
| Tensile strength (L) | 349mpa |
| Yield strength (L) | 326mpa |
| Elongation (L) | 13% |
| Surface Treatment | Coated |
| Application | Widely used in Transformer, reactor, mutual inductor, motor. |
High Frequency Properties: 5oriented silicon steels exhibit excellent high-frequencymagnetic properties, making them suitable for applications involving high-frequency powerconversion, such as inductors and high-frequency transformers.
Temperature Stability: These steels demonstrate good temperature stability, maintainingtheir magnetic properties even at elevated temperatures. This property is important inapplications where the material may be exposed to high operating temperatures.
FAQ
How to control the quality?
Test certificates are provided with the goods, and third party inspection can be supported.
What is the packing method?
Usually, we pack the goods in bundles, we can also pack the goods according to customer’s requirements.
Can you produce according to samples?
Yes, if you have the size of the product you need, customised solution you can contact us, we can produce it for you according to your samples or technical drawings.
