Silicon Steel

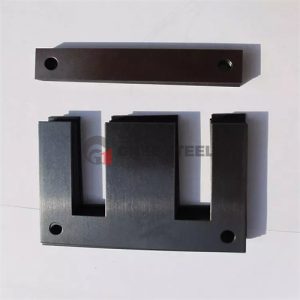

3 Phase Silicon Steel Ei 125
Electrical steel can be delivered in a semi-processed state so that, after punching the final shape, a final heat treatment can be applied to form the normally required 150-micrometer grain size. ...
DESCRIPTION
Electrical steel can be delivered in a semi-processed state so that, after punching the final shape, a final heat treatment can be applied to form the normally required 150-micrometer grain size.
| Specification | Dimension for each part | |||||||||||
| GOODS | A | B | C | D | E | F | G | H | I | J | K | Φ |
| 3 phase EI-100B | 100 | 100 | 20 | 20 | 20 | 60 | 80 | 20 | 80 | 80 | 10 | 6 |
| 3 phase EI-125B | 125 | 125 | 25 | 25 | 25 | 75 | 100 | 25 | 100 | 100 | 12.5 | 6 |
| 3 phase EI-150B | 150 | 150 | 30 | 30 | 30 | 90 | 120 | 30 | 120 | 120 | 15 | 8 |
| 3 phase EI-175B | 175 | 175 | 35 | 35 | 35 | 105 | 140 | 35 | 140 | 140 | 17.5 | 8 |
| 3 phase EI-190B | 190 | 190 | 38 | 38 | 38 | 114 | 152 | 38 | 152 | 152 | 19 | 8 |
| 3 phase EI-200B | 200 | 200 | 40 | 40 | 40 | 120 | 160 | 40 | 160 | 160 | 20 | 10 |
| 3 phase EI-225B | 225 | 225 | 45 | 45 | 45 | 135 | 180 | 45 | 180 | 180 | 22.5 | 10 |
| 3 phase EI-250B | 250 | 250 | 50 | 50 | 50 | 150 | 200 | 50 | 200 | 200 | 25 | 10 |
| 3 phase EI-275B | 275 | 275 | 55 | 55 | 55 | 165 | 220 | 55 | 220 | 220 | 27.5 | 10 |
| 3 phase EI-300B | 300 | 300 | 60 | 60 | 60 | 180 | 240 | 60 | 240 | 240 | 30 | 12 |
| 3 phase EI-350B | 350 | 350 | 70 | 70 | 70 | 210 | 280 | 70 | 280 | 280 | 35 | 12 |
| 3 phase EI-400B | 400 | 400 | 80 | 80 | 80 | 240 | 320 | 80 | 320 | 320 | 40 | 14 |
| 3 phase EI-450B | 450 | 450 | 90 | 90 | 90 | 270 | 360 | 90 | 360 | 360 | 45 | 16 |
| 3 phase EI-500B | 500 | 500 | 100 | 100 | 100 | 300 | 400 | 100 | 400 | 400 | 50 | 16 |
FAQ
Q: Do you provide samples? Is it free or extra?
A: Yes, we will provide free samples before mass production.
Q: What are your payment terms?
A: Payment<=1000USD, 100% prepayment. Payment >=$1000, 40% T/T in advance, balance before shipment.If you have any other questions, please feel free to contact us via the methods below.
Q:Are you a factory or trading company?
A: We are a factory with more than 10 years’ experience.
